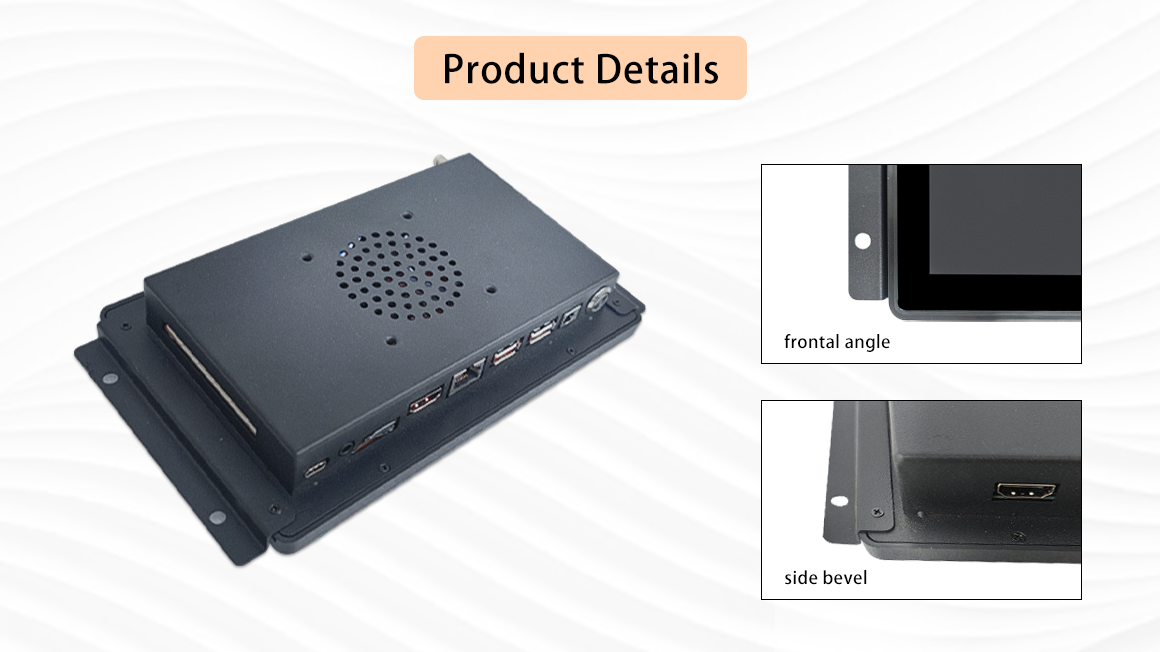

7 Inch Monitor Embedded Touch Screen (model P)

——Screen type: LED liquid crystal screen (a-Si TFT-LCD WLED backlight) specification A；——Size: 7 inches (16:9)；——Display area: 156 (W) * 88 (H) mm；——Resolution: 1024 * 600；——Brightness: 250cd / m2；——Response time: 10 / 15 (typ.) (TR / TD) (MS)；——Total color: 262K / 16.7M (6-bit / 6-bit + hi FRC)；——Visual angle: full viewing angle 85 / 85 / 85 / 85 (typ.) (CR ≥ 10) (left / right / up / down)；——Color temperature: 6638k；——Contrast: 1000:1；——Refresh frequency: 60Hz；——Signal access: LVDS；——Power supply voltage: 3.3V

——Touch technology: projection capacitive Technology (capacitive touch screen)；——Response time: < 5ms；——Touch points: 10 point touch, which can realize multi-point touch functions such as enlarging and reducing pictures；——Effective touch recognition: > 1.5mm；——Scanning frequency: 200Hz；——Communication mode: full speed USB 2.0, 3.0；——Firmware: support USB upgrade；——Working current / voltage: 180mA / DC + 5V ± 5%；——Anti light interference: normal use of sunlight, incandescent lamps, fluorescent lamps and other strong light changes；——Surface hardness: chemical toughened, Mohs 6 explosion-proof glass；——Touch data output mode: coordinate output；——Scanning accuracy: 4096 × four thousand and ninety-six；——Theoretical hits: more than 50 million；——Drive: no drive, plug and play；——Touch mode: finger / capacitive pen
